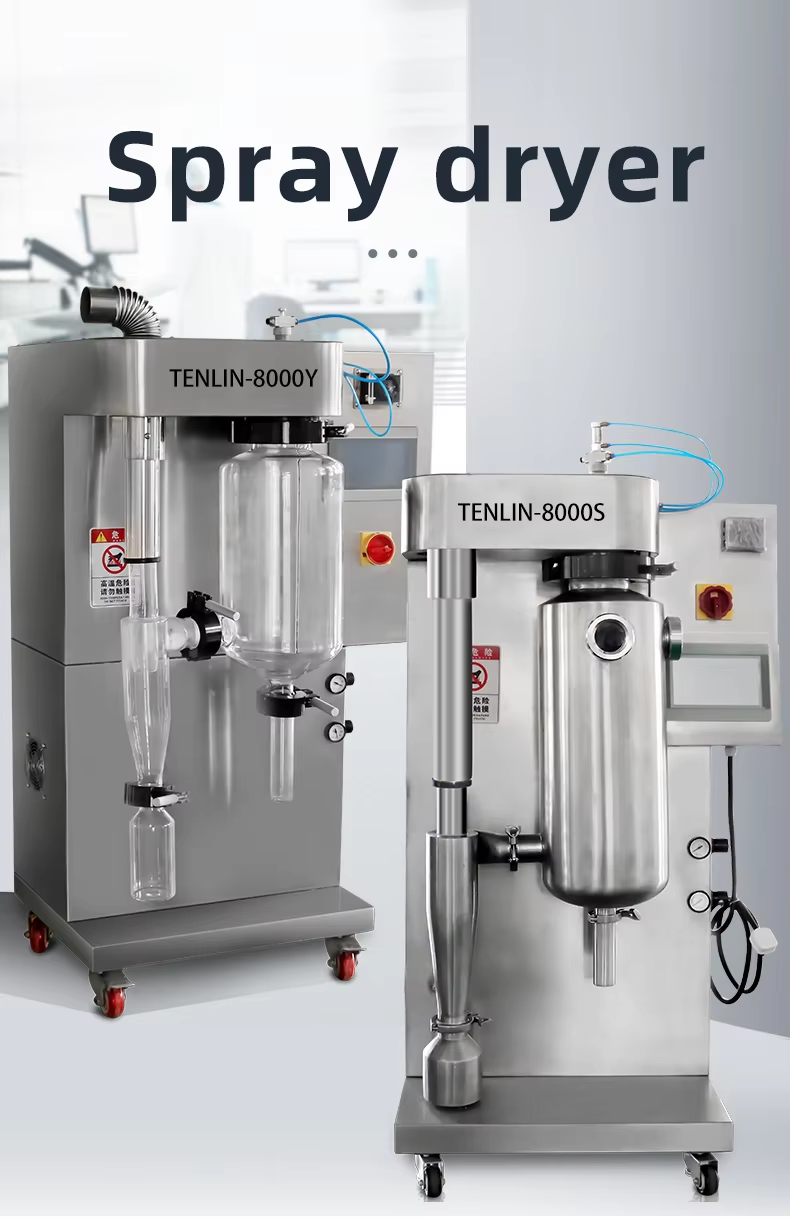

Laboratory mini spray dryer machine

Mini Spray Dryer introductio
Mini laboratory spray dryer (small spray dryer) has a compact design and can be independently placed in a laboratory or placed on a specially designed stainless steel rack. It is self-contained and can be operated without other facilities. One-button start-up, large color LCD touch screen operation, fully automatic or manual monitoring can be used for two operation modes, convenient operation and monitoring of the experimental process. It is the spray dryer with the smallest volume, the lowest noise and the excellent drying effect.

Main Features of Small Spray Dryer.
●Original spray nozzle, high efficiency.
●Colorful large touch screen operation, fully automatic control and manual control combined, Chinese and English panel, parameter LCD display.
●Real-time regulation PID thermostatic control technology, accurate temperature control, heating temperature control accuracy ± 1 ℃.
●Spraying, drying and collecting devices are made of transparent and high quality high-temperature resistant borosilicate glass, and the whole process of spray drying experiment can be visualized.
●The atomization structure of two-fluid spray is made of high-precision 316 stainless steel, and the particle size of the spray powder is normally distributed with good fluidity.
●Jet automatic dredging (through the needle) and adjustable frequency, when the nozzle is blocked, it will be automatically cleared to ensure the continuity of the experiment.
● The feeding volume can be adjusted by feeding peristaltic pump.
●Special protection function, the fan does not start, the heater can not start.
●Built-in imported oil-free air compressor, the noise is less than 50db.
●After drying, the granularity of the product is uniform.
Product Paramenters
SMALL SPRAY DRYER
Models

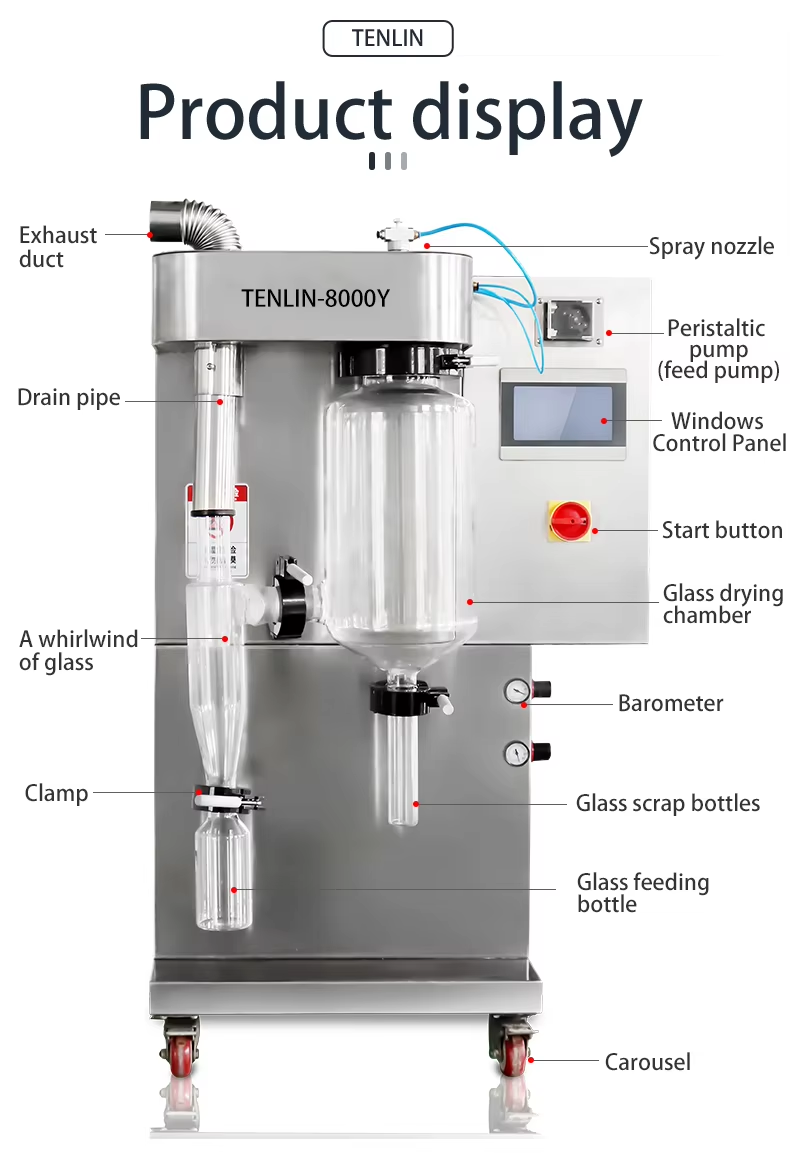

TENLIN-8000Y
(Glass drying chamber)

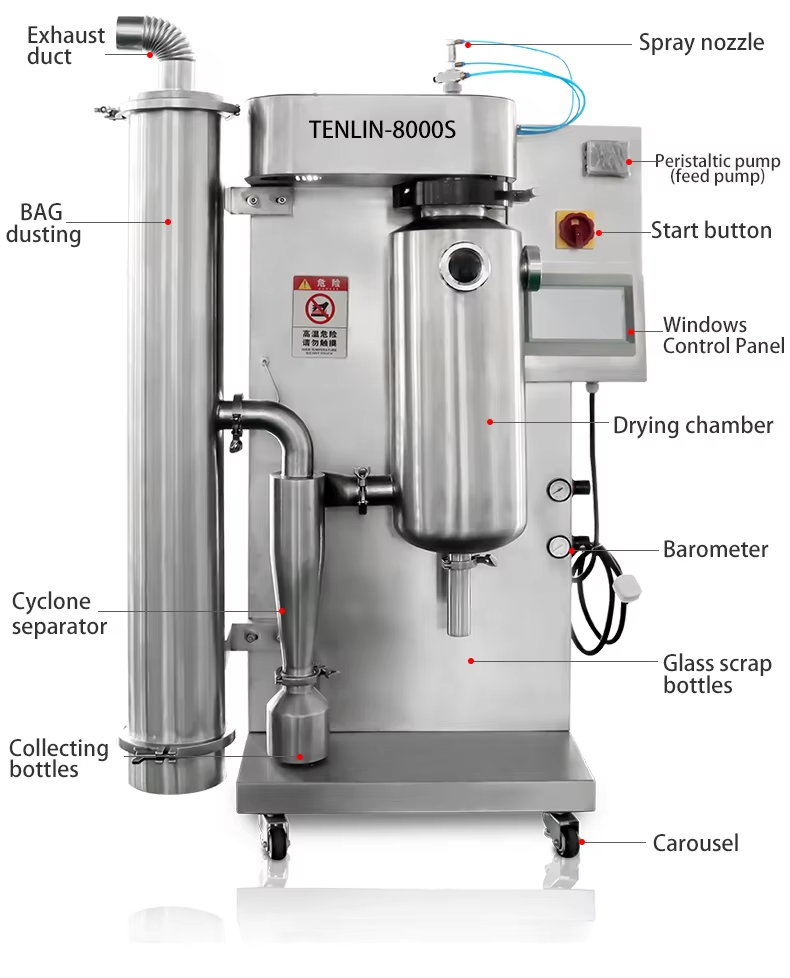

TENLIN-8000S
(Stainless steel drying chamber)
TENLIN-8000SC
(Stainless steel bag dust)
TENLIN-8000SF
(Stainless steel double spin separator)
Air Inlet temperature control
30~300℃
Air outlet temperature control
30~150℃
The amount of water evaporated
1500ML/H~2000ML/H
Maximum feed rate
2000ML/H
Minimum feed rate
50ML
Feeding method
Peristaltic pump adjustment
Average drying time
1.0~1.5S
Electric heater power
3.5KW AC220V Single phase ground
Fan
0.55KW Max air volume 5.6M3/Min Max wind pressure1020PA
Air compressor
1.2KW Max gas production 4.2 M3/H
Work Compressed air
2~3BAR
Nozzle diameter
1.00MM (0.7 1.5 2.0) 0ptional
External dimension
1200MM(H)x600MM(L)x700MM(W)
Weight
About 130KG
Models

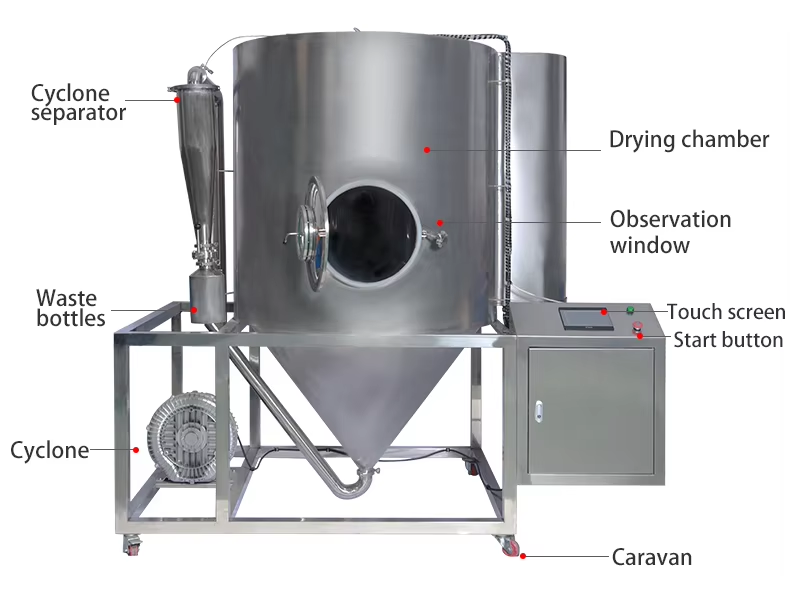

TENLIN-3000L (Spray dryer)
Air Inlet temperature control
30°C~300°C
Air outlet temperature control
30°C~140°C
The amount of water evaporated
1500ML/H~3000ML/H
Maximum feed rate
MAX 3000ML/H (Adjustable)
Minimum feed rate
50ML
Feeding method
Peristaltic pump adjustment
Temperature control accuracy
±1°C
Average drying time
1.0~1.5S
Nozzle diameter
1.00MM(0.7 1.5 2.0) 0ptional
Fan Power and air volume
0.55KW, 100M3/H
Air compressor power and gas production
1.2KW，108L/MIN
Heating power
5KW
Whole machine power
7KW 220V/50HZ
Weight of equipment
130KG
External dimension of equipment
1450mm(H)x800mm(L)800mm(W)
