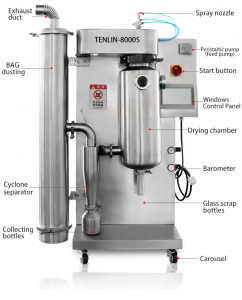

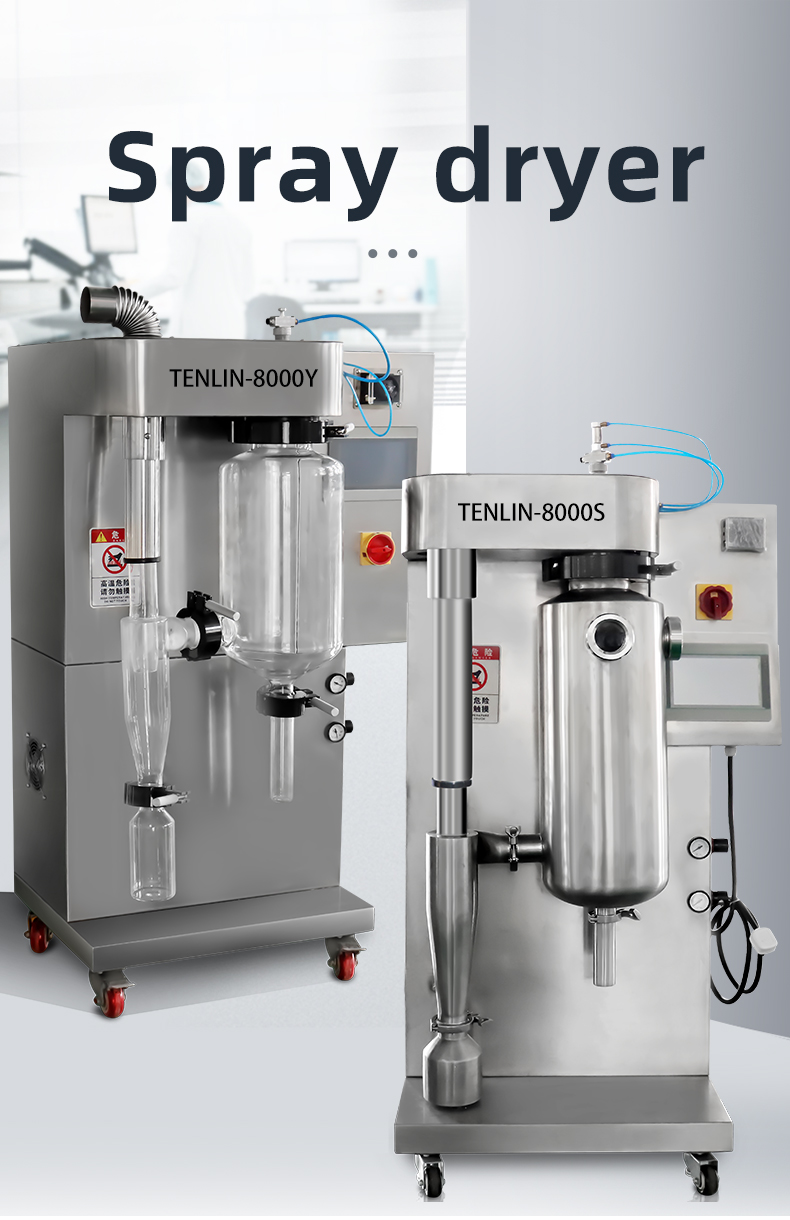

Tenlin mini spray dryer for coconut milk powder

Main Features of Small Spray Dryer.
●Original spray nozzle, high efficiency.
●Colorful large touch screen operation, fully automatic control and manual control combined, Chinese and English panel, parameter LCD display.
●Real-time regulation PID thermostatic control technology, accurate temperature control, heating temperature control accuracy ± 1 ℃.
●Spraying, drying and collecting devices are made of transparent and high quality high-temperature resistant borosilicate glass, and the whole process of spray drying experiment can be visualized.
●The atomization structure of two-fluid spray is made of high-precision 316 stainless steel, and the particle size of the spray powder is normally distributed with good fluidity.
●Jet automatic dredging (through the needle) and adjustable frequency, when the nozzle is blocked, it will be automatically cleared to ensure the continuity of the experiment.
● The feeding volume can be adjusted by feeding peristaltic pump.
●Special protection function, the fan does not start, the heater can not start.
●Built-in imported oil-free air compressor, the noise is less than 50db.
●After drying, the granularity of the product is uniform.

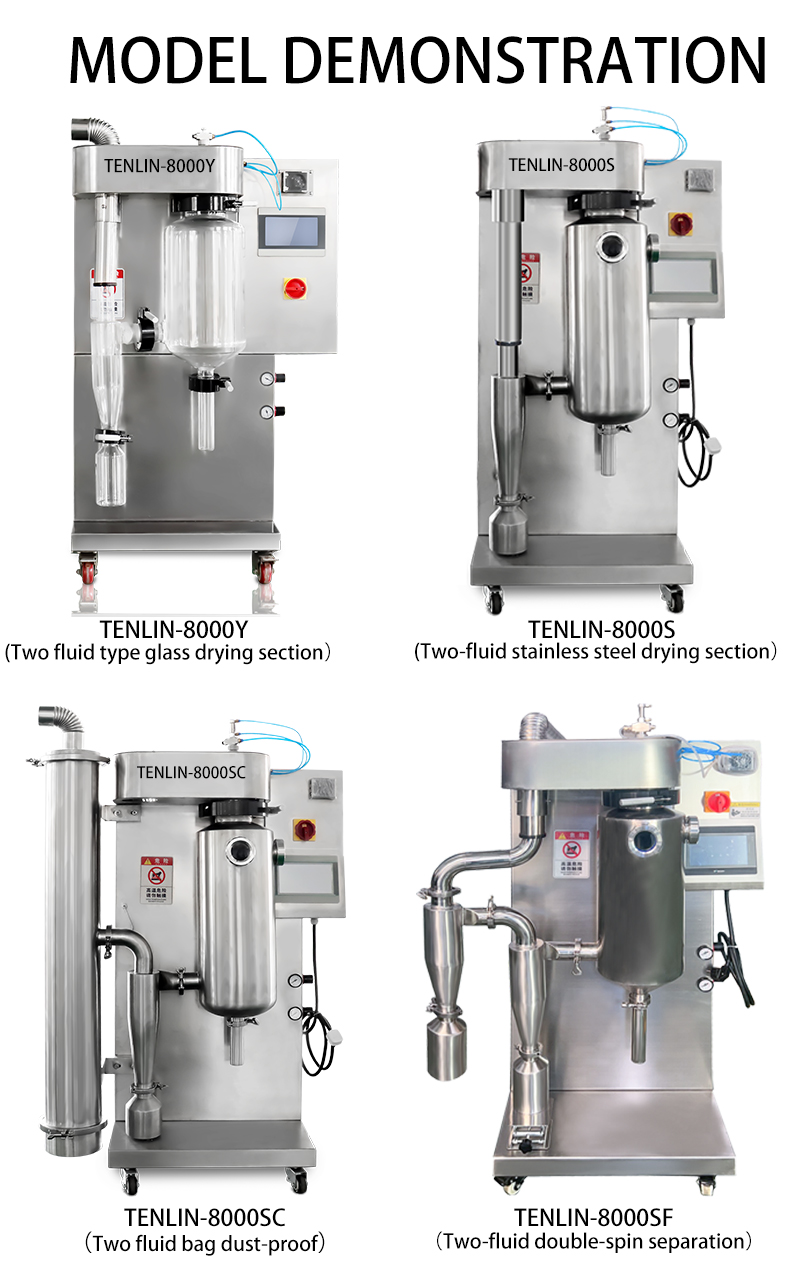

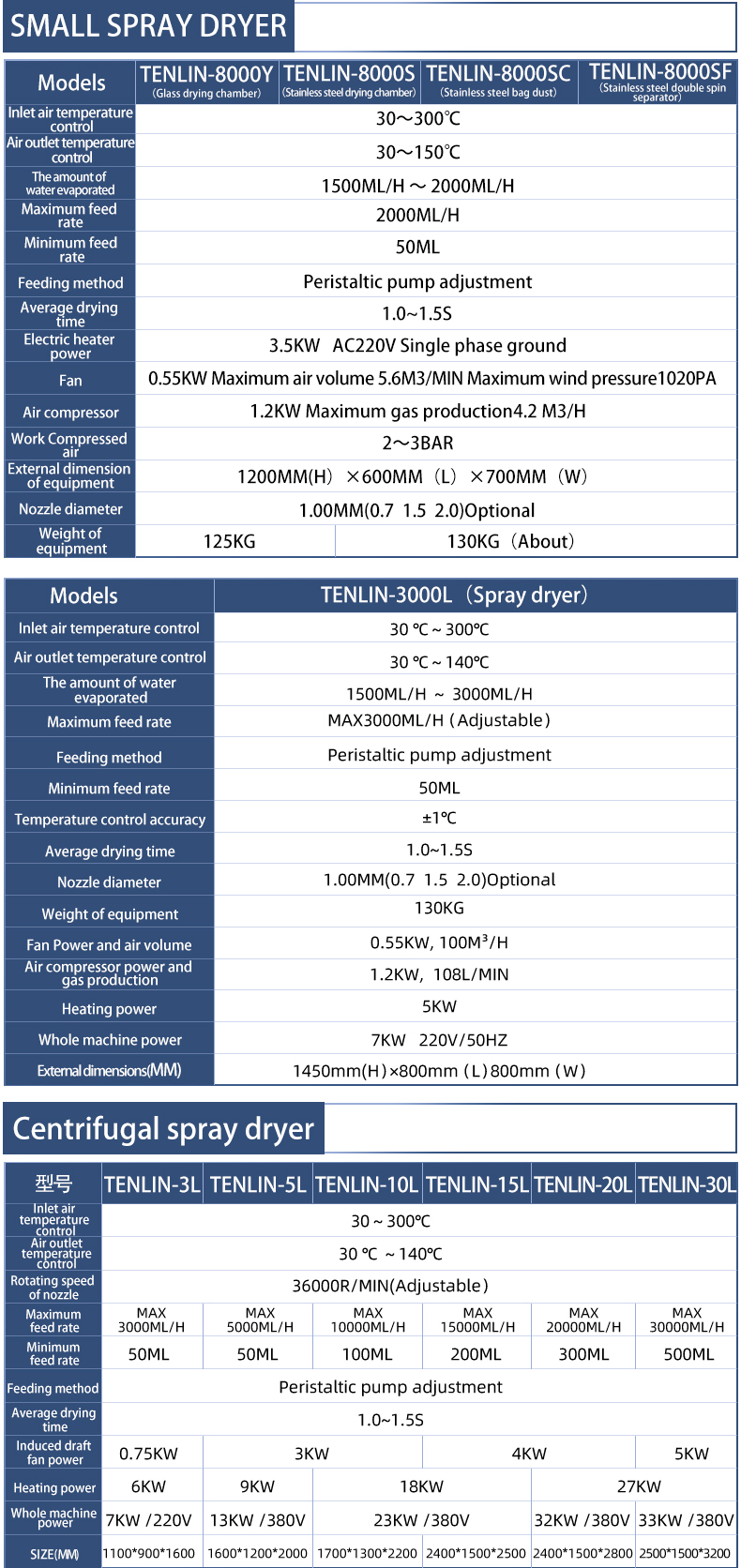

Models
TENLIN-8000Y
(Glass drying chamber)
TENLIN-8000S
(Stainless steel drying chamber)
TENLIN-8000SC
(Stainless steel bag dust)
TENLIN-8000SF
(Stainless steel double spin separator)
Air Inlet temperature control
30~300℃
Air outlet temperature control
30~150℃
The amount of water evaporated
1500ML/H~2000ML/H
Maximum feed rate
2000ML/H
Minimum feed rate
50ML
Feeding method
Peristaltic pump adjustment
Average drying time
1.0~1.5S
Electric heater power
3.5KW AC220V Single phase ground
Fan
0.55KW Max air volume 5.6M3/Min Max wind pressure1020PA
Air compressor
1.2KW Max gas production 4.2 M3/H
Work Compressed air
2~3BAR
Nozzle diameter
1.00MM (0.7 1.5 2.0) 0ptional
External dimension
1200MM(H)x600MM(L)x700MM(W)
Weight
About 130KG
Models

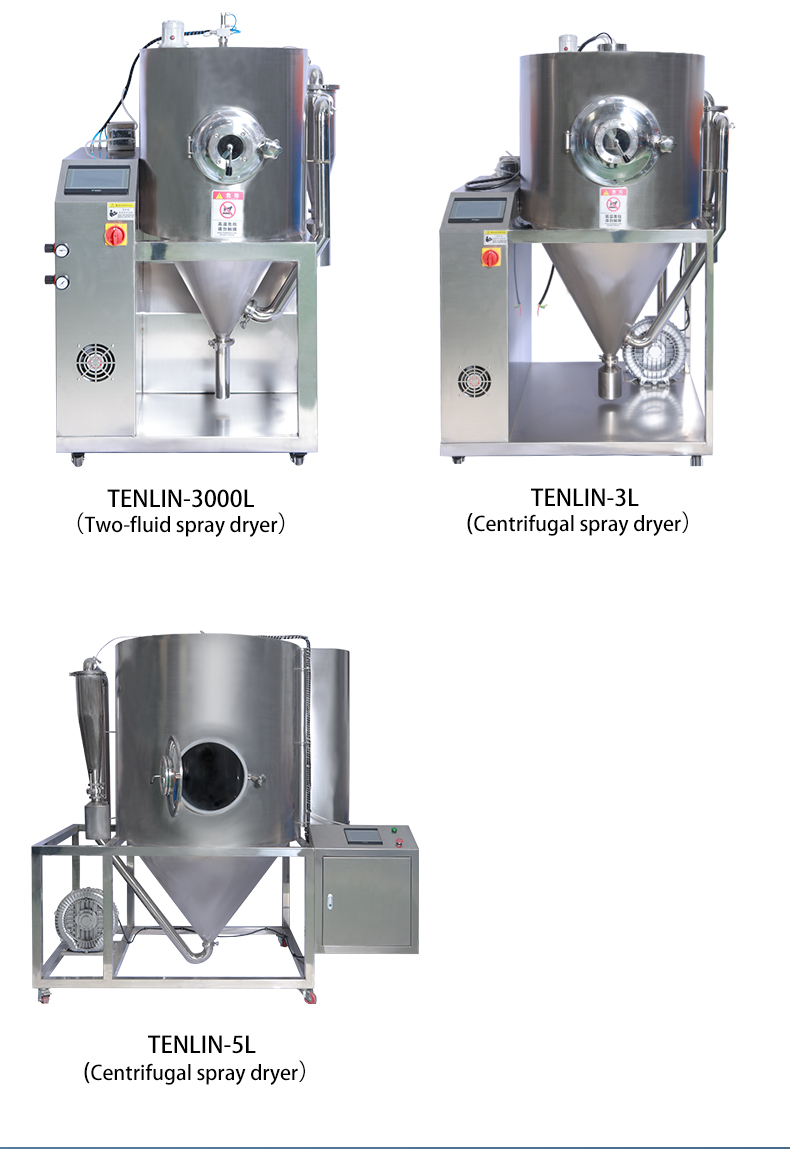

TENLIN-3000L (Spray dryer)
Air Inlet temperature control
30°C~300°C
Air outlet temperature control
30°C~140°C
The amount of water evaporated
1500ML/H~3000ML/H
Maximum feed rate
MAX 3000ML/H (Adjustable)
Minimum feed rate
50ML
Feeding method
Peristaltic pump adjustment
Temperature control accuracy
±1°C
Average drying time
1.0~1.5S
Nozzle diameter
1.00MM(0.7 1.5 2.0) 0ptional
Fan Power and air volume
0.55KW, 100M3/H
Air compressor power and gas production
1.2KW，108L/MIN
Heating power
5KW
Whole machine power
7KW 220V/50HZ
Weight of equipment
130KG
External dimension of equipment
1450mm(H)x800mm(L)800mm(W)
